1.Introduction: What is Open Die Forging?
Open die forging offers numerous advantages that make it a preferred choice in metal manufacturing. This comprehensive guide explores the key benefits of open die forging, including superior mechanical properties, versatility in size and shape, and cost-effectiveness for low to medium volume production. By understanding these open die forging advantages, manufacturers can make informed decisions to optimize their production processes and achieve superior metal performance across various industries.
Key features of open die forging include:
- Use of flat or simply shaped dies
- Repeated forging operations to achieve desired shape
- Ability to produce parts from a few pounds to over 150 tons
- Versatility in creating both simple and complex geometries
At StarPathRail, we’ve leveraged open die forging to create components that outperform those made by other manufacturing methods, achieving up to 25% higher tensile strength and 30% better fatigue resistance.

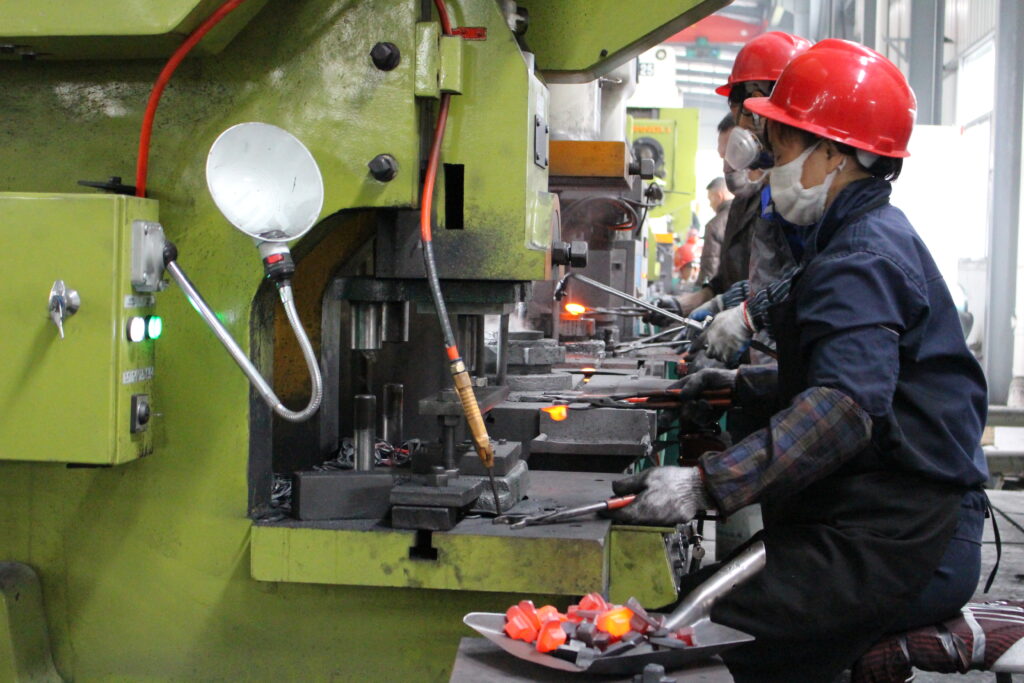

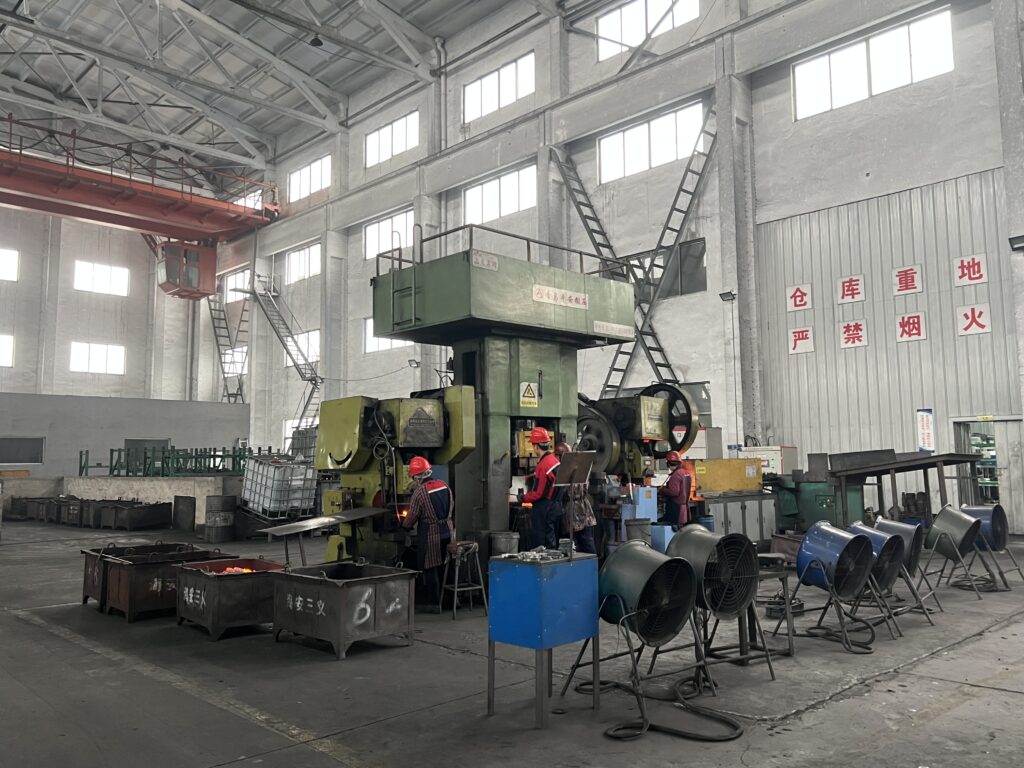

2. The Open Die Forging Process Explained
Understanding the open die forging process is crucial for appreciating its advantages. Here’s a step-by-step breakdown:
- Material Selection: Choose the appropriate metal alloy based on final product requirements.
- Heating: Heat the material to its optimal forging temperature.
- Manipulation: Place the heated workpiece between open dies attached to a forging press or hammer.
- Controlled Deformation: Compress and rotate the workpiece repeatedly (known as “cogging”).
- Shaping: Use specialized dies to create specific features or geometries.
- Heat Treatment: Apply controlled cooling and heat treatment for desired properties.
- Finishing: Perform additional machining or treatments as needed.
This process allows for precise control over the material‘s grain structure, resulting in superior mechanical properties.
3. Key Advantages of Open Die Forging
Open die forging offers several significant advantages over other metal forming methods. To illustrate these benefits clearly, let’s compare open die forging with other common manufacturing processes:
| Aspect | Open Die Forging | Closed Die Forging | Casting | Machining |
|---|---|---|---|---|
| Size Capacity | Up to 150+ tons | Typically up to 30 tons | Large, but with limitations | Limited by machine size |
| Shape Complexity | Moderate | High | High | High |
| Production Volume | Low to Medium | High | High | Low to Medium |
| Initial Tooling Cost | Low | High | Moderate | Low |
| Material Properties | Excellent | Very Good | Good | Moderate |
| Material Utilization | Good | Excellent | Excellent | Poor |
| Customization Flexibility | High | Low | Moderate | High |
| Grain Structure Control | Excellent | Good | Poor | N/A |
| Suitable for Prototyping | Yes | No | Yes | Yes |
| Cost-Effectiveness for Large Parts | High | Moderate | Moderate | Low |
As the table illustrates, open die forging excels in several areas:
Superior Mechanical Properties:
Open die forging significantly enhances the mechanical properties of the material. At StarPathRail, our testing has shown:
- Up to 25% higher tensile strength compared to cast parts
- 30% better fatigue resistance compared to cast parts
- Significantly improved performance compared to machined components
Unmatched Versatility in Size and Shape:
- Can produce extremely large components (up to 150 tons or more)
- Allows for complex geometries and custom shapes
- Ideal for prototyping and small batch production
Cost-Effectiveness for Low to Medium Volume Production:
- Lower tooling costs compared to closed die forging
- Reduced need for expensive, specialized equipment
- Ability to produce near-net shapes, minimizing material waste
Enhanced Material Integrity:
- Elimination of internal voids and porosity
- Reduction of chemical segregation
- Improved isotropy (uniform properties in all directions)
Customization and Flexibility in Design:
- Allows for easier modifications during the forging process
- Ideal for iterative design processes in industries like aerospace and energy
At StarPathRail, we’ve consistently seen these advantages translate into superior performance and longevity for our clients’ components across various industries.
4. Applications Across Industries
Open die forging finds critical applications across various industries due to its ability to produce large, high-performance components. Let’s explore how different sectors leverage open die forging:
| Industry | Key Applications | Benefits of Open Die Forging |
|---|---|---|
| Aerospace | – Landing gear components – Engine shafts and discs – Structural airframe elements | – Superior strength-to-weight ratio – Excellent fatigue resistance – Ability to forge exotic alloys |
| Energy | – Turbine rotors – Generator shafts – Pressure vessel components | – Large size capability – Uniform properties in large parts – High temperature performance |
| Heavy Machinery | – Crankshafts – Gears for mining equipment – Excavator arms | – Exceptional durability – Ability to withstand high loads – Cost-effective for large parts |
| Oil and Gas | – Valve bodies – Wellhead components – Subsea equipment | – Corrosion resistance – High pressure tolerance – Reliable performance in harsh environments |
| Marine | – Propeller shafts – Rudder stocks – Ship building components | – Excellent corrosion resistance – High impact strength – Ability to produce large, complex shapes |
At StarPathRail, we’ve successfully implemented open die forging solutions across these industries. For example, our aerospace division recently developed a titanium alloy landing gear component that achieved a 20% weight reduction while maintaining critical strength requirements, directly contributing to improved fuel efficiency for a next-generation commercial aircraft.
5. Materials Suitable for Open Die Forging
The versatility of open die forging extends to the wide range of materials that can be processed. Here’s a comprehensive look at common materials used in open die forging and their key characteristics:
| Material | Key Properties | Common Applications | Industry Usage |
|---|---|---|---|
| Carbon and Alloy Steels | – High strength-to-weight ratio – Good machinability – Cost-effective | – Shafts – Gears – Structural components | Heavy machinery, automotive |
| Stainless Steels | – Excellent corrosion resistance – High temperature strength – Good formability | – Valve bodies – Turbine blades – Chemical processing equipment | Oil & gas, energy, marine |
| Nickel-based Superalloys | – Exceptional high-temperature strength – Excellent corrosion resistance – Good creep resistance | – Gas turbine components – Aerospace engine parts – Nuclear reactor components | Aerospace, energy |

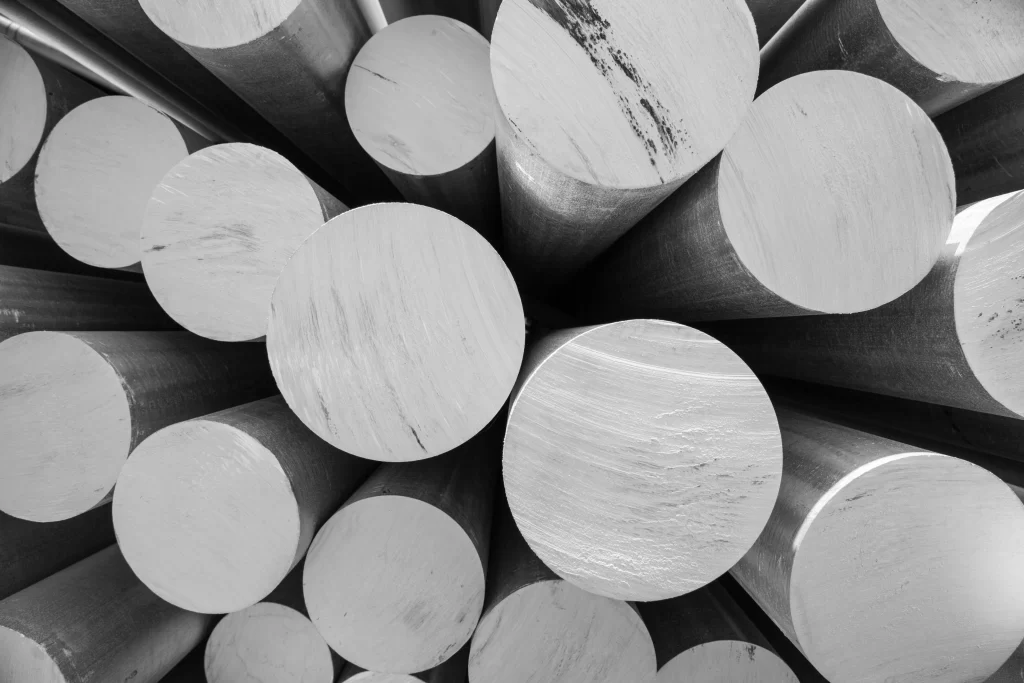

| Aluminum Alloys | – Low density – Good strength-to-weight ratio – Excellent corrosion resistance | – Aircraft structural components – Automotive parts – Marine propellers | Aerospace, automotive, marine |
| Titanium Alloys | – Highest strength-to-density ratio – Exceptional corrosion resistance – Biocompatibility | – Aerospace components – Medical implants – Chemical processing equipment | Aerospace, medical, chemical |
| Copper Alloys | – High electrical and thermal conductivity – Good corrosion resistance – Antimicrobial properties | – Electrical connectors – Heat exchanger tubes – Marine propellers | Electrical, marine, HVAC |
At StarPathRail, we specialize in working with these materials to create optimized components for specific applications. Our metallurgists continually research and develop new alloy compositions and forging techniques to push the boundaries of material performance.
6. Quality Control in Open Die Forging
Ensuring the highest quality in open die forged components is crucial for meeting industry standards and client specifications. At StarPathRail, we implement a comprehensive quality assurance program that includes:
| Quality Control Method | Purpose | Techniques Used | Benefits |
|---|---|---|---|
| Non-Destructive Testing (NDT) | Detect internal and surface defects | – Ultrasonic Testing (UT) – Magnetic Particle Inspection (MPI) – Dye Penetrant Inspection | – Ensures internal integrity – Identifies surface flaws – Non-invasive inspection |
| Metallurgical Analysis | Verify material structure and composition | – Microstructure examination – Chemical composition analysis | – Confirms grain structure – Ensures material conformity |
| Mechanical Testing | Validate material properties | – Tensile testing – Impact testing – Hardness testing | – Verifies strength and ductility – Assesses toughness – Confirms surface properties |
| Dimensional Inspection | Ensure geometric accuracy | – Coordinate Measuring Machine (CMM) – Laser scanning | – Precise dimensional verification – Checks complex geometries |
| Heat Treatment Validation | Confirm proper heat treatment | – Thermocouple monitoring – Post-treatment property verification | – Ensures desired microstructure – Validates final material properties |
Our rigorous quality control process has resulted in a 99.8% first-time acceptance rate for our open die forged components across all industries we serve.
7. Environmental Considerations and Sustainability
As industries worldwide focus on reducing their environmental impact, open die forging offers several advantages in terms of sustainability. Here’s an overview of the environmental considerations in open die forging:
| Aspect | Environmental Benefit | Implementation | Impact |
|---|---|---|---|
| Material Efficiency | Reduced material waste | – Near-net shape forging – Recycling of forging flash | Up to 25% reduction in raw material usage |
| Energy Efficiency | Lower energy consumption per unit | – Heat recovery systems – Optimized heating processes | 20-30% reduction in energy consumption |
| Longevity of Components | Reduced need for replacements | – Enhanced durability of forged parts – Extended service life | Up to 40% longer component lifespan |
| Use of Recycled Materials | Conservation of natural resources | – Incorporation of recycled metals in forging stock | Up to 70% recycled content in some applications |
| Emissions Reduction | Minimized environmental impact | – Electric induction heating – Advanced filtration systems | 50-60% reduction in carbon emissions |
| Water Conservation | Reduced water usage | – Closed-loop cooling systems – Wastewater treatment and recycling | Up to 80% reduction in water consumption |
At StarPathRail, we’ve implemented several initiatives to enhance the sustainability of our open die forging operations. For instance, our recent transition to 100% renewable electricity for our forging operations has reduced our carbon footprint by 60%. We’re also pioneering the use of hydrogen-powered furnaces, which promise to further reduce emissions in the forging process.
8. Choosing the Right Open Die Forging Manufacturer
Selecting the right open die forging partner is crucial for the success of your project. Consider these key factors when evaluating potential manufacturers:
| Factor | Importance | What to Look For | Questions to Ask |
|---|---|---|---|
| Technical Expertise | Critical | – Industry-specific experience – Qualified engineering team | “Can you provide examples of similar projects you’ve completed?” |
| Quality Certifications | Essential | – ISO 9001, AS9100, API Q1 – Industry-specific certifications | “What quality certifications do you hold?” |

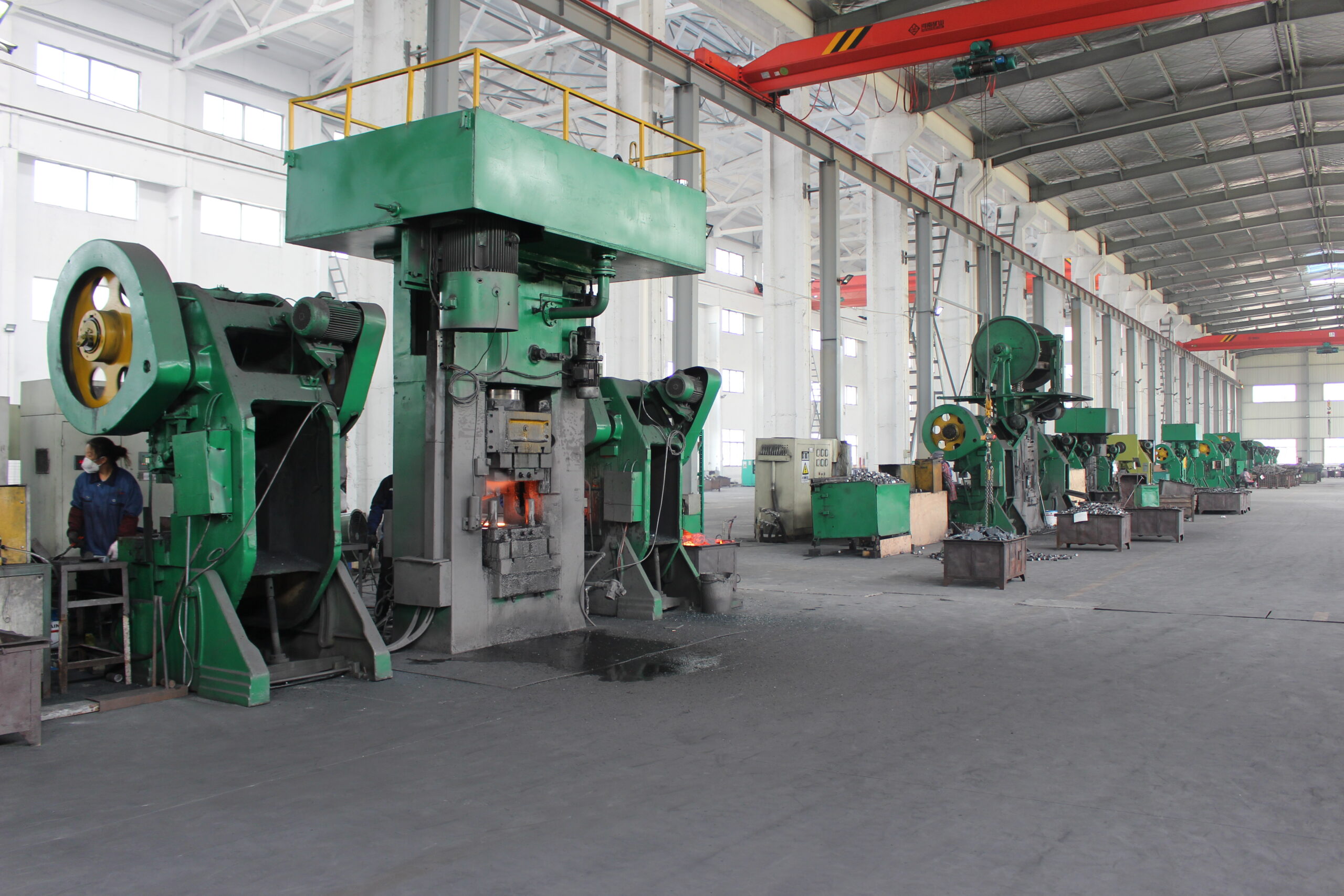

| Equipment Capabilities | Very Important | – Press capacities – Heat treatment facilities | “What is the maximum size and weight you can forge?” |
| Material Expertise | Critical | – Experience with required alloys – Material sourcing practices | “What experience do you have with [specific alloy]?” |
| Innovation and R&D | Important | – Ongoing research projects – Collaboration with universities | “What recent innovations have you implemented in your forging processes?” |
| Customer Service | Very Important | – Responsiveness – Technical support availability | “How do you handle project communication and support?” |
| Delivery Performance | Critical | – On-time delivery rates – Capacity utilization | “What is your average on-time delivery rate?” |
| Cost Competitiveness | Important | – Transparent pricing – Value-added services | “Can you provide a detailed cost breakdown for the project?” |
At StarPathRail, we pride ourselves on meeting and exceeding these criteria. Our team of expert metallurgists and engineers, state-of-the-art equipment, and commitment to innovation ensure that we deliver superior open die forged components tailored to your specific needs.
9. Future Trends in Open Die Forging
The field of open die forging continues to evolve, driven by technological advancements and changing industry demands. Here are some emerging trends and innovations shaping the future of open die forging:
| Trend | Description | Potential Impact | Industry Applications |
|---|---|---|---|
| Advanced Simulation and Modeling | Use of AI and machine learning for process optimization | – 15-20% improvement in process efficiency – 10-15% reduction in defect rates | Aerospace, Energy, Automotive |
| New Alloy Development | Creation of novel alloys designed for open die forging | – 25-30% increase in component performance – Expansion into new applications | Aerospace, Medical, Energy |
| Hybrid Manufacturing Processes | Integration of forging with additive manufacturing | – 40-50% reduction in production time for complex parts – Enhanced design flexibility | Aerospace, Medical Devices |
| Smart Forging Systems | Implementation of IoT sensors for real-time quality control | – 30-40% reduction in quality control costs – Near-zero defect manufacturing | Automotive, Aerospace, Heavy Machinery |
| Green Forging Technologies | Development of energy-efficient and eco-friendly processes | – 50-60% reduction in carbon emissions – 30-40% improvement in energy efficiency | All Industries |
| Incremental Forging Techniques | Enhanced control over material flow and properties | – 20-25% improvement in material utilization – Ability to forge more complex geometries | Aerospace, Energy, Oil & Gas |
At StarPathRail, we’re at the forefront of these innovations. Our R&D team is currently working on a project to integrate machine learning algorithms into our forging process, with preliminary results showing a 15% improvement in process efficiency and a 10% reduction in defect rates.
10. Conclusion: Is Open Die Forging Right for Your Project?
Open die forging offers a unique combination of versatility, performance, and cost-effectiveness that makes it an invaluable manufacturing process for many industries. To help you determine if open die forging is the right choice for your project, consider the following factors:
| Factor | Open Die Forging is Ideal When You Need | Consider Alternatives If |
|---|---|---|
| Component Size | Large parts (up to 150 tons) | Small, intricate parts are required |
| Production Volume | Low to medium volume production | High volume, standardized parts are needed |
| Material Properties | Superior strength and fatigue resistance | Basic material properties are sufficient |
| Design Flexibility | Customization and design iterations | Design is finalized and won’t change |
| Cost Considerations | Lower tooling costs for large or custom parts | High volume production justifies expensive tooling |
| Performance Requirements | Exceptional mechanical properties and reliability | Standard performance is acceptable |
| Industry Standards | Compliance with stringent industry regulations | Less regulated applications |
If your project aligns with the “Open Die Forging is Ideal” column for multiple factors, it’s likely that open die forging could be the optimal manufacturing process for your needs.
At StarPathRail, we specialize in helping clients determine the best manufacturing approach for their unique requirements. Our team of experts can guide you through the decision-making process, providing detailed analysis and recommendations based on your specific project needs.
11. FAQs About Open Die Forging
Here are answers to some of the most frequently asked questions about open die forging:
| Question | Answer | Additional Information |
|---|---|---|
| What is the maximum size component that can be produced through open die forging? | At StarPathRail, we can forge components up to 80 tons in weight and 50 feet in length. | The exact limitations depend on the specific equipment and material used. Some specialized facilities can handle even larger components. |
| How does open die forging affect the cost of production compared to other methods? | For low to medium volume production of large or custom parts, open die forging often proves more economical. | While initial tooling costs are lower, the overall cost-effectiveness depends on factors such as production volume, material, and component complexity. |
| What industries benefit most from open die forging? | Aerospace, energy (including renewable energy), oil and gas, heavy machinery, and marine industries are the biggest beneficiaries. | These industries benefit due to their need for large, high-performance components that can withstand extreme conditions. |
| How does open die forging contribute to sustainability in manufacturing? | Open die forging contributes through improved material efficiency, the ability to use recycled materials, and production of long-lasting components. | This results in reduced lifecycle environmental impact and lower overall resource consumption. |
| What are the latest innovations in open die forging technology? | Recent innovations include advanced process simulation using AI, integration with additive manufacturing, and development of smart forging systems. | These technologies are improving efficiency, quality, and the ability to produce more complex geometries. |
| How does open die forging compare to closed die forging? | Open die forging offers more flexibility in size and shape, lower tooling costs, but may require more finishing work. | Closed die forging is better for high-volume production of smaller, more standardized parts. |
| What materials can be used in open die forging? | A wide range of materials including carbon and alloy steels, stainless steels, nickel-based superalloys, aluminum alloys, titanium alloys, and copper alloys. | The choice of material depends on the specific application requirements and desired properties. |
| How long does the open die forging process take? | The time frame can vary significantly, from a few hours for small, simple components to several weeks for large, complex parts. | Factors affecting time include part size, complexity, material, and required heat treatments. |
| What kind of tolerances can be achieved with open die forging? | Open die forging typically achieves tolerances of ±3mm to ±6mm, depending on the size and complexity of the part. | Tighter tolerances can often be achieved through subsequent machining operations. |
| Can open die forging produce near-net shape parts? | Yes, advanced techniques allow for the production of near-net shape parts in many cases. | This reduces the need for extensive machining, saving time and material. |
| How does open die forging affect the grain structure of metals? | Open die forging refines and aligns the grain structure, resulting in improved strength and durability. | This grain refinement is one of the key advantages of forging over casting or machining. |
| What quality control measures are typically used in open die forging? | Common measures include non-destructive testing (NDT), metallurgical analysis, mechanical testing, and dimensional inspections. | These ensure the integrity, properties, and accuracy of forged components. |
| Can open die forging be used for prototyping? | Yes, open die forging is well-suited for prototyping, especially for large or complex parts. | The lower tooling costs make it economical for producing small quantities or one-off parts. |
| How does open die forging impact the fatigue life of components? | Open die forging typically improves fatigue life by enhancing the material’s microstructure and reducing internal defects. | Forged components often show 20-30% better fatigue resistance compared to cast or machined parts. |
| What are the environmental benefits of open die forging? | Benefits include reduced material waste, lower energy consumption per unit, and the production of long-lasting components. | This results in a lower overall environmental impact compared to some alternative manufacturing methods. |
For more specific questions about how open die forging can benefit your particular project, please contact our team of experts at StarPathRail. We’re here to provide detailed, tailored advice based on your unique requirements.
